• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum, 5-spoke with smooth surface and rectangular pockets
• Tires, P265/70R17 all-season, blackwall
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season blackwall
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Moldings, color-keyed bodyside
• Assist steps, Black
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Mirrors, outside heated power-adjustable, manual-folding (Mirror caps are color-keyed.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, color-keyed
• Liftgate with liftglass rear door system with rear-window wiper/washer

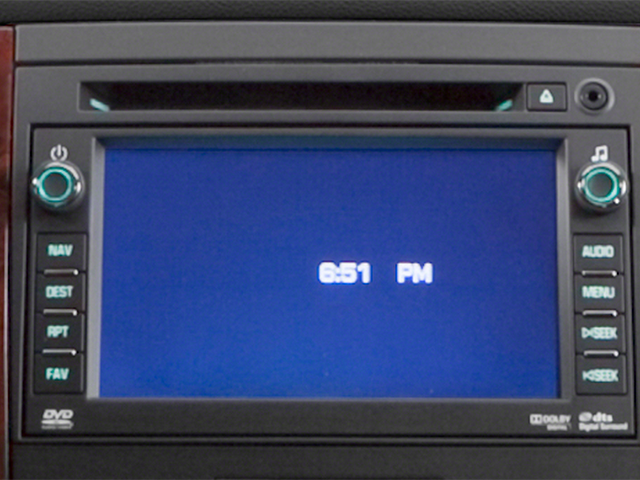

• Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed compensated volume, TheftLock, auxiliary input jack, and USB port
• Audio system feature, 6-speaker system
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Not available with (AZ3) 40/20/40 split-bench front seat.)
• Audio system feature, USB port
• SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (Not available with (UYS) audio system with navigation. IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at sirisusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) with specific steering wheel controls (Deleted when (UE0) OnStar, delete is ordered.)

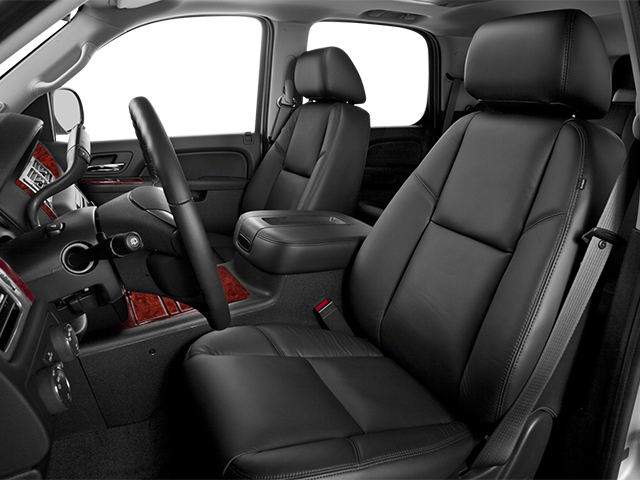

• Seats, front bucket with Premium Cloth (AG1) 6-way power driver and (AG2) front passenger seat adjusters, adjustable head restraints, driver manual lumbar control, floor console and rear storage pockets

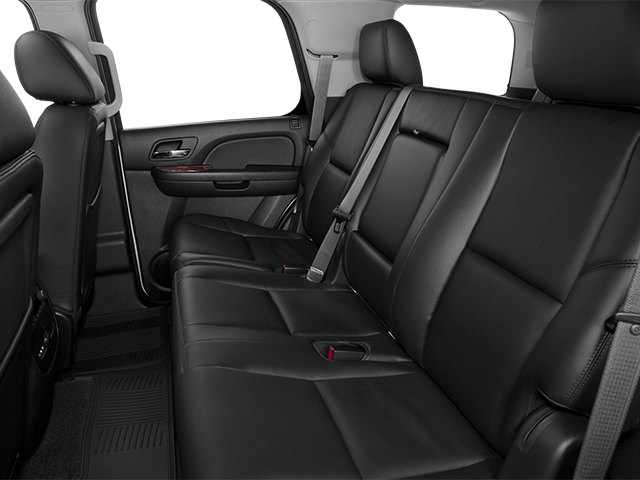

• Seats, second row 60/40 split-folding bench, 3-passenger with center armrest with 2 cup holders
• Seat adjuster, driver 6-way power
• Seat adjuster, front passenger 6-way power (Standard with (A95) front bucket seats only. Not available with (AZ3) 40/20/40 split-bench front seat.)
• Seats, third row 50/50 split-bench, 3-passenger removable, all-belts-to-seat

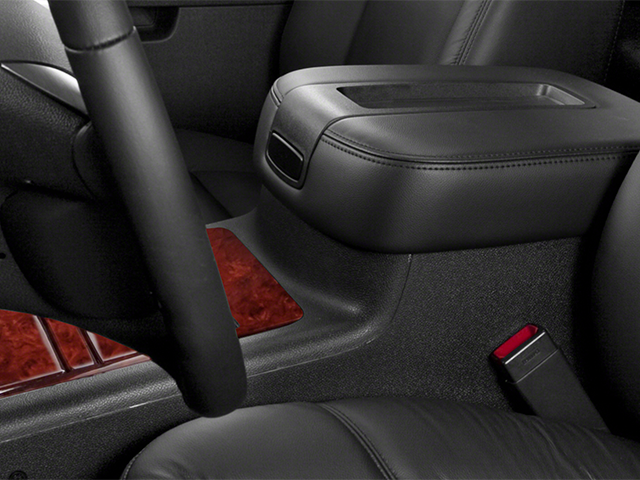

• Console, floor with storage area, cup holders and integrated second row audio controls (Not available with (AZ3) 40/20/40 split-bench front seats.)
• Headliner, cloth
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable

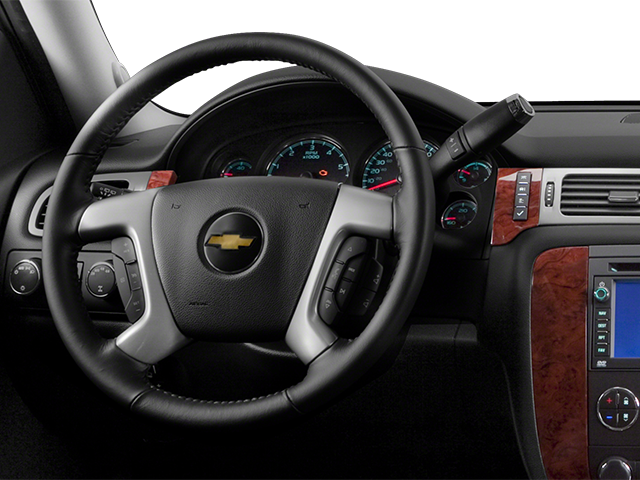

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

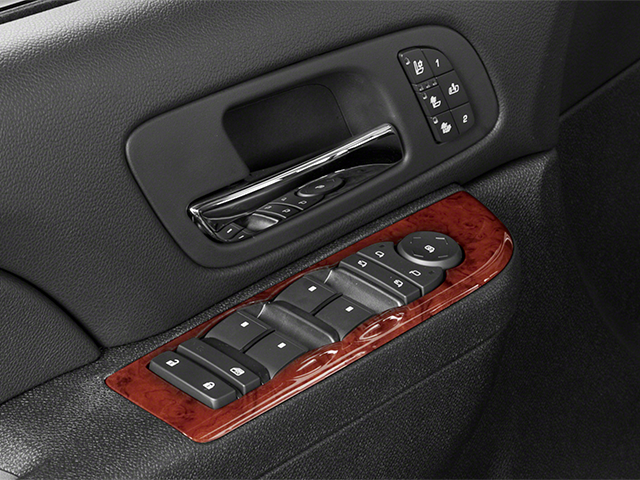

• Windows, power with driver Express-Down and lockout features
• Pedals, power-adjustable for accelerator and brake
• Door locks, power programmable with lockout protection
• Remote vehicle starter system includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, tri-zone manual HVAC controls with individual climate settings for driver, right-front passenger and rear seat with rear controls located in floor console with front bucket seats and in the roof console with front bench seat
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console
• Mirror, inside rearview auto-dimming with rear camera display
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions

• StabiliTrak, stability control system with traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) passenger third row bench seat (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation". Also, updated footnote 1 to now read "Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions. (Visit onstar.com for details and system limitations.)
• Rear Park Assist with audible warning
• Rear Vision Camera (Note: images appear on Navigation screen for units equipped with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. For units not equipped with Navigation systems images will appear within rearview mirror.)
• Safety belts, 3-point, driver and right-front passenger
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire Pressure Monitoring System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

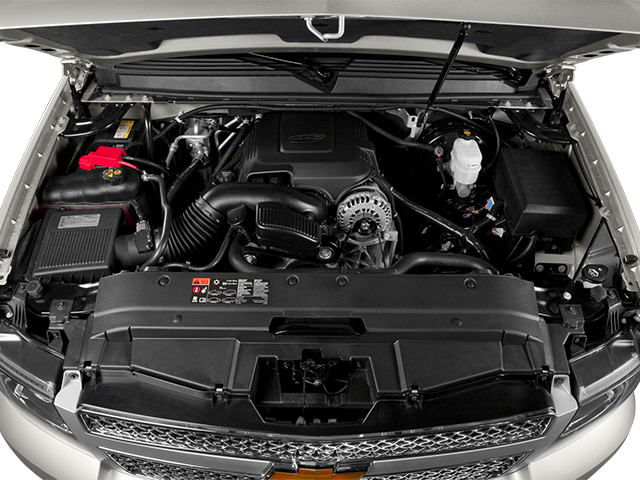

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [238.6 kW] @ 5400 rpm
• 335 lb-ft of torque [452.2 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm
• 348 lb-ft of torque [469.8 N-m] @ 4400 rpm)
• iron block (STD)

• Preferred Equipment Group 1LS
• 3.08 Rear Axle Ratio
• 17" x 7.5" 5-Spoke Aluminum Wheels
• Front Reclining Bucket Seats
• Premium Cloth Seat Trim
• AM/FM Stereo w/CD Player & MP3 Playback
• 1st & 2nd Row All-Weather Floor Mats
• License Plate Front Mounting Package
• Premium Smooth Ride Suspension Package
• Rear Vision Camera
• 6-Way Power Driver Seat Adjuster
• 6-Way Power Front Passenger Seat Adjuster
• Floor Console
• Inside RV Mirror w/Rr Camera Display
• SiriusXM Satellite Radio
• USB Port Audio System Feature
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Directions & Connections
• Exterior Parking Camera Rear
• AM/FM radio: SiriusXM
• Compass
• Auto-dimming Rear-View mirror
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear seat center armrest
• Rear reading lights
• Rear audio controls
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Bodyside moldings
• Alloy wheels
• Adjustable pedals
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Spoiler
• Roof rack
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2787
• Curb Weight - Rear (lbs): 2680
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 5-Link
• Spring Capacity - Front (lbs): 3250
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.787
• Tires
• Front Tire Order Code: QGI
• Rear Tire Order Code: QGI
• Spare Tire Order Code: ZVL
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): 2135
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116
• Length, Overall w/rear bumper (in): 202
• Width, Max w/o mirrors (in): 79
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.7
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 9
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 39.2
• Second Leg Room (in): 39
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.6
• Third Head Room (in): 39.7
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary
• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
